MANUAL VALVE

MANUAL BALL VALVE

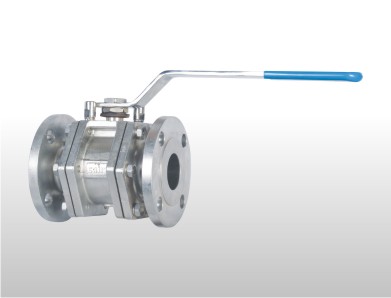

Hand Lever & Gear Operated 3 Piece Design Metal Seated Ball Valve

SPECIFICATIONS__________________________________
Model : BMS

Design : 3 Piece Fire Safe Design Floating Type Ball Valve

Body : WCB / CF8 / CF8M / CF3M

Size : 1/2” to 10”

Ball : CF8 / CF8M

Seals : Metal to Metal

Temprature : -50° C to 500° C

Pressure : Up to 56 BAR

End Connection : Screwed End / Flanged End to ASME B 16.5 Class 150
(300 Class & 600 Class available on Request)

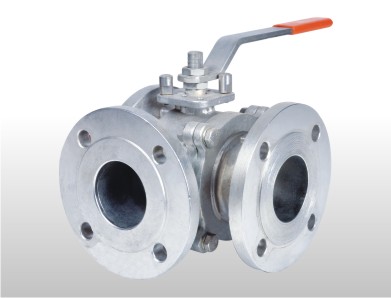

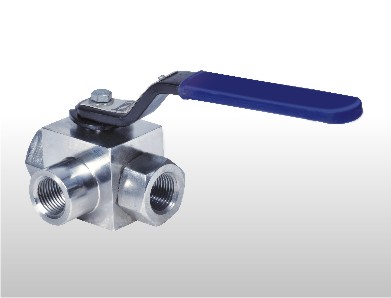

Hand Lever Operated 3 Way High Pressure Ball Valve

SPECIFICATIONS__________________________________
Model : 3AWA

Design : 3 Way Ball Valve

Body : Forged Carbon / S.S. 304 / S.S. 316

Size : 1/2" to 1.1/2"

Ball : S.S. 304 / S.S. 316

Stem : S.S. 304 / S.S. 316

Temprature : -20 °C to 150 °C

Pressure : Up to 500 Bar

"O" Ring : NBR / EPDM / Viton / Peek

End Connection : Screwed End to BSP/NPT



Gear Operated ‘CW’ Series 3 Way Ball Valve

SPECIFICATIONS__________________________________
Model : CWP

Design : 3 Way 2 Piece Design C Way Ball Valve

Body : WCB / CF8 / CF8M

Body / Ball Seat : PTFE / CFT / GFT / TFM / PEEK

Size : 1/2" to 3" S/E & 1/2" to 8" F/E

Ball : CF8 / CF8M

Temprature : Max 180 °C

Pressure : 10 BAR

Port : Only “L” Port Available

End Connection : Screwed End / Flanged End As Per ASME B16.5 Class 150



MANUAL BUTTERFLY VALVE

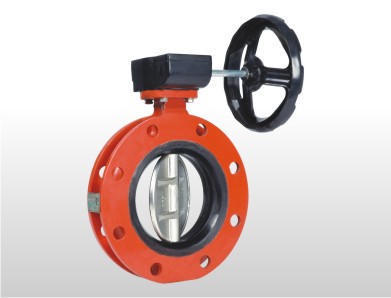

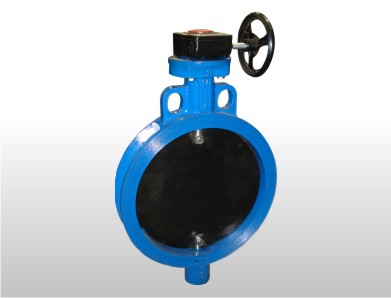

Handle & Worm Gear Operated Wafer Type Double Flange Butterfly Valve

SPECIFICATIONS__________________________________
Model : DFW-ECO

Design : Short Wafer type Double Flanged Centric Disc Butterfly Valves
with Single Piece Rubber Lined Body

Body : Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M /
CD4MCuN

Size Range : 3" to 48"

Disc. : Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M /
CD4MCuN (S.G. Iron with Teflon / Teflon / Powder / Nylon
Coated / & Rubber Line)

Seat : Nitrile / EPDM / Viton / Hypelon / Silicon / Neoprene

Seat Leakage : PN 10 / PN 16 ( PN 20 ON REQUEST)
Temprature : -20°C to 80°C For Nitrile Seat (Depending On MOC)

Pressure rating : PN 10 / PN 16 ( PN 20 ON REQUEST)

End Connection : Double Flange As Per ASME B16.5 / ASME B 16.47 Class 150



Handle & Worm Gear Operated Wafer Type Damper Valve

SPECIFICATIONS__________________________________
Model : DP

Design : Short Wafer Type Damper Valve with Metal to Metal Seat

Body : Gry Iron / Cast Steel / Ductile Iron / CF8 / CF8M

Size Range : 1.1/2" to 20"

Disc. : Cast Steel / WCB / CF8 / CF8M

Seat : Metal to Metal

Seat Leakage : 5% Leakage of full flow
Temprature : -25°C to 400°C (Up to 600° C Depending MOC)

Pressure : PN 6 ( Maximum)

End Connection : Wafer Sandwiched (Lug type on request)

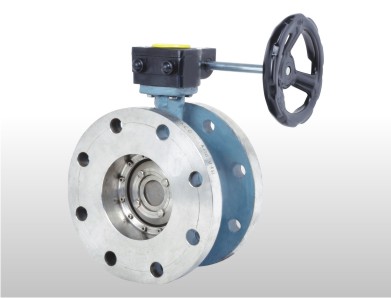

Hand Lever / Worm Gear Operated Double Eccentric Design off Set Disc Double Flange Butterfly Valve 150 Class.

SPECIFICATIONS__________________________________
Model : BOD

Design : Double Eccentric Design Off Set Disc Double Flange
Fire Safe Design Butterfly Valve

Body : Cast Iron / Ductile Iron / WCB / CF8 / CF8M

Size Range : 2.1/2" To 48"

Disc. : Ductile Iron / WCB / CF8 / CF8M

Seat : NBR / EPDM / VITON / PTFE / RPTFE / TFM

Leakage : Class VI as Per ANSI B 16,B 16.104

Temprature : up to 220° C

Pressure rating : PN 10 / PN 16 / PN 25

End Connection : ASME B 16.5 Class 150

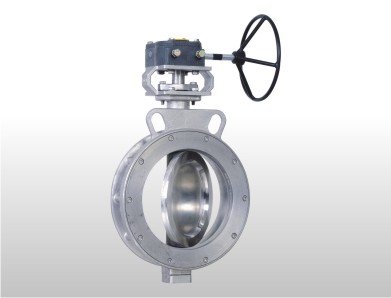

Handle & Gear Operated Metal Seated High Performance Butterfly Valve (Spherical Disc Valve)

SPECIFICATIONS__________________________________
Model : SMT

Design : Wafer Type Metal Seated Spherical Disc Valve

Body : ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M

Size Range : 2" to 16"

Disc. : ASTM A 351 Gr. CF8 / CF8M

Seat : Metal to Metal

Seat Leakage : As per Class VI

Temprature : up to 400°C

Pressure : PN 10

End Connection : ASME B 16.5 Class 150

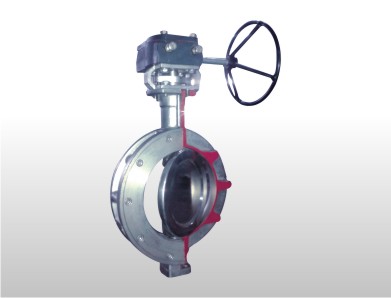

Hand Lever / Worm Gear Operated Triple Offset “Wafer type” Butterfly Valve 150# (Fire Safe Design)

SPECIFICATIONS__________________________________
Model : SDVTOB

Design : Triple Off Set Fire Safe Design Wafer type Butterfly Valve

Body : ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M

Size Range : 2" to 36"

Disc. : ASTM A 351 Gr. CF8 / CF8M

Seat : Metal to Metal

Seat Leakage : As per Class VI

Temprature : 550 °C ( Above 550°C On Request )

Pressure rating : As per 150# B16.34

End Connection : ASME / ANSI B 16.5 Class 150
